Case Study: Customized 20L Gear Pump Hot Melt Glue Machine for a Thailand Customer

Custom Scraper Glue Gun and Holder for a Hot Melt Adhesive Application

The Customer's Requirement

Different production processes require different hot melt adhesive application methods.

For this project, the customer in Thailand needed a hot melt glue machine with a 20L adhesive tank and gear pump system. The customer also required a customized glue application solution rather than a standard glue gun configuration.

The main requirements included:

• 20L hot melt adhesive capacity

• Gear pump adhesive supply

• Customized scraper glue gun

• Customized glue gun holder

• Configuration suitable for the customer's production process

The Solution

KQ supplied a customized 20L Gear Pump Hot Melt Glue Machine for the Thailand customer.

The system is designed for stable hot melt adhesive supply and is equipped with a gear pump for adhesive delivery.

To match the customer's specific application, KQ also customized the scraper glue gun and its mounting holder.

The customized holder provides a dedicated mounting solution for the glue gun, making it easier to position the application unit according to the customer's production requirements.

20L Hot Melt Adhesive Tank

The machine features a 20L adhesive tank, providing sufficient capacity for continuous hot melt adhesive application.

Gear Pump System

The gear pump provides controlled adhesive delivery from the hot melt machine to the application unit.

This configuration is suitable for applications that require a stable and continuous hot melt adhesive supply.

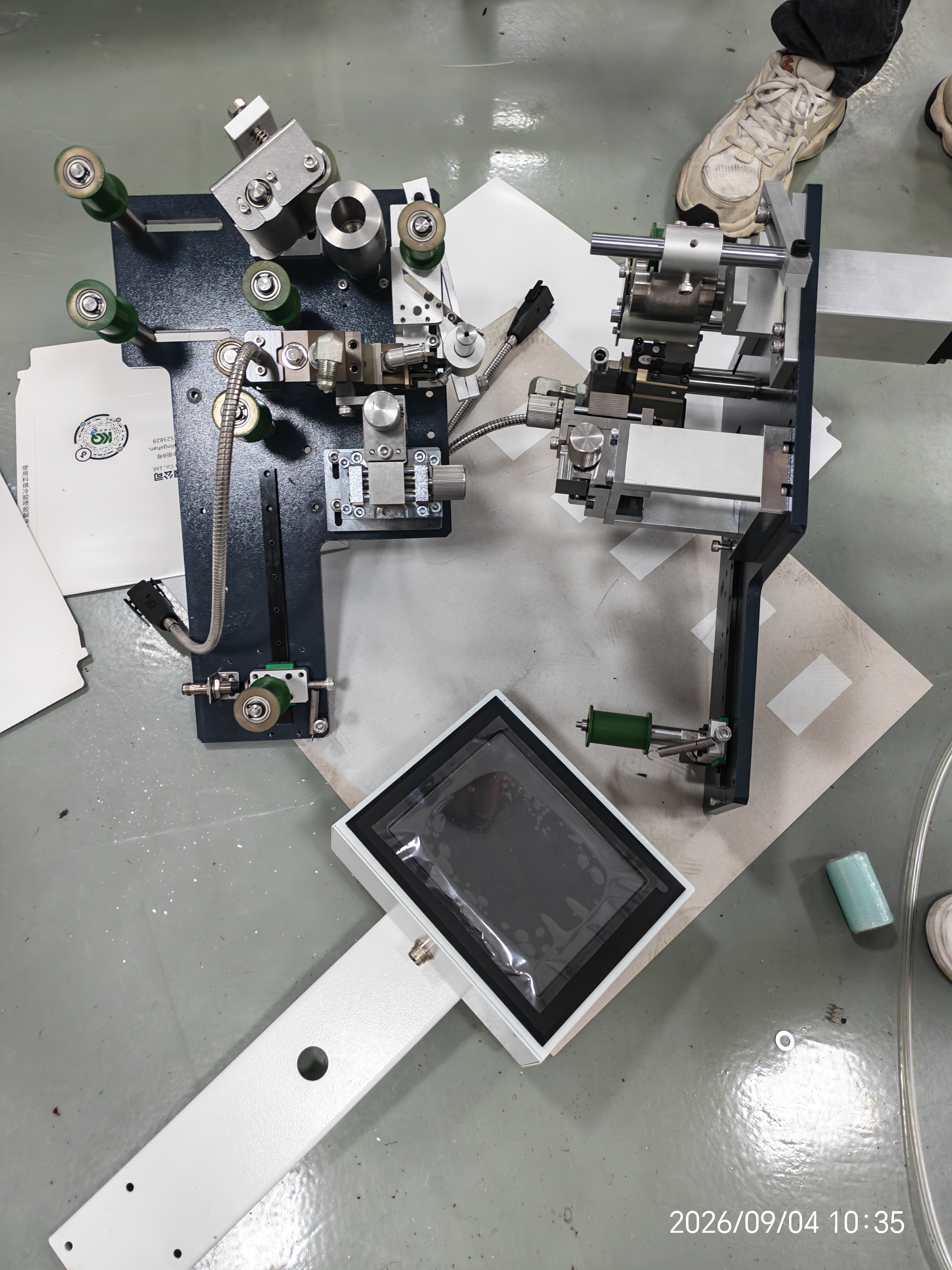

Customized Scraper Glue Gun

Instead of using a standard application configuration, KQ developed a customized scraper glue gun for the customer's specific application.

The scraper-style application unit is designed according to the required glue application method and production setup.

Customized Glue Gun Holder

KQ also customized the glue gun holder to match the application unit and installation requirements.

This allows the glue gun to be positioned properly within the customer's production process.

Key Benefits

Customized for the Application

The glue gun and holder were designed around the customer's actual production requirements.

Stable Adhesive Supply

The gear pump system provides controlled hot melt adhesive delivery during operation.

20L Adhesive Capacity

The 20L tank provides a larger adhesive capacity for continuous production applications.

Flexible Installation

The customized holder makes it easier to integrate the scraper glue gun into the customer's equipment setup.

Complete Hot Melt Solution

The project combines the hot melt machine, gear pump, scraper glue gun, and customized mounting structure into one application-focused solution.

Why Choose a Customized Hot Melt Solution?

A standard hot melt machine may not always match the application requirements.

The adhesive type, application method, glue position, production speed, and available installation space can all affect the final equipment configuration.

For this project, KQ customized both the glue application unit and its mounting structure according to the customer's requirements.

This is part of KQ's approach to industrial automation:

We build the solution around the customer's actual production process.

Application

This type of hot melt adhesive solution can be used for:

• Industrial Packaging

• Carton Packaging

• Furniture

• End-of-Line Packaging

• Manufacturing Automation

• Hot Melt Adhesive Application

Conclusion

For this customer in Thailand, KQ provided more than a standard hot melt glue machine.

The solution combines a 20L gear pump hot melt glue machine with a customized scraper glue gun and dedicated glue gun holder, providing a configuration built around the customer's actual application requirements.

Real application. Practical automation. Customized solutions.
