Product Information
Product Name | PRINTING QUALITY INSPECTION SYSTEM |

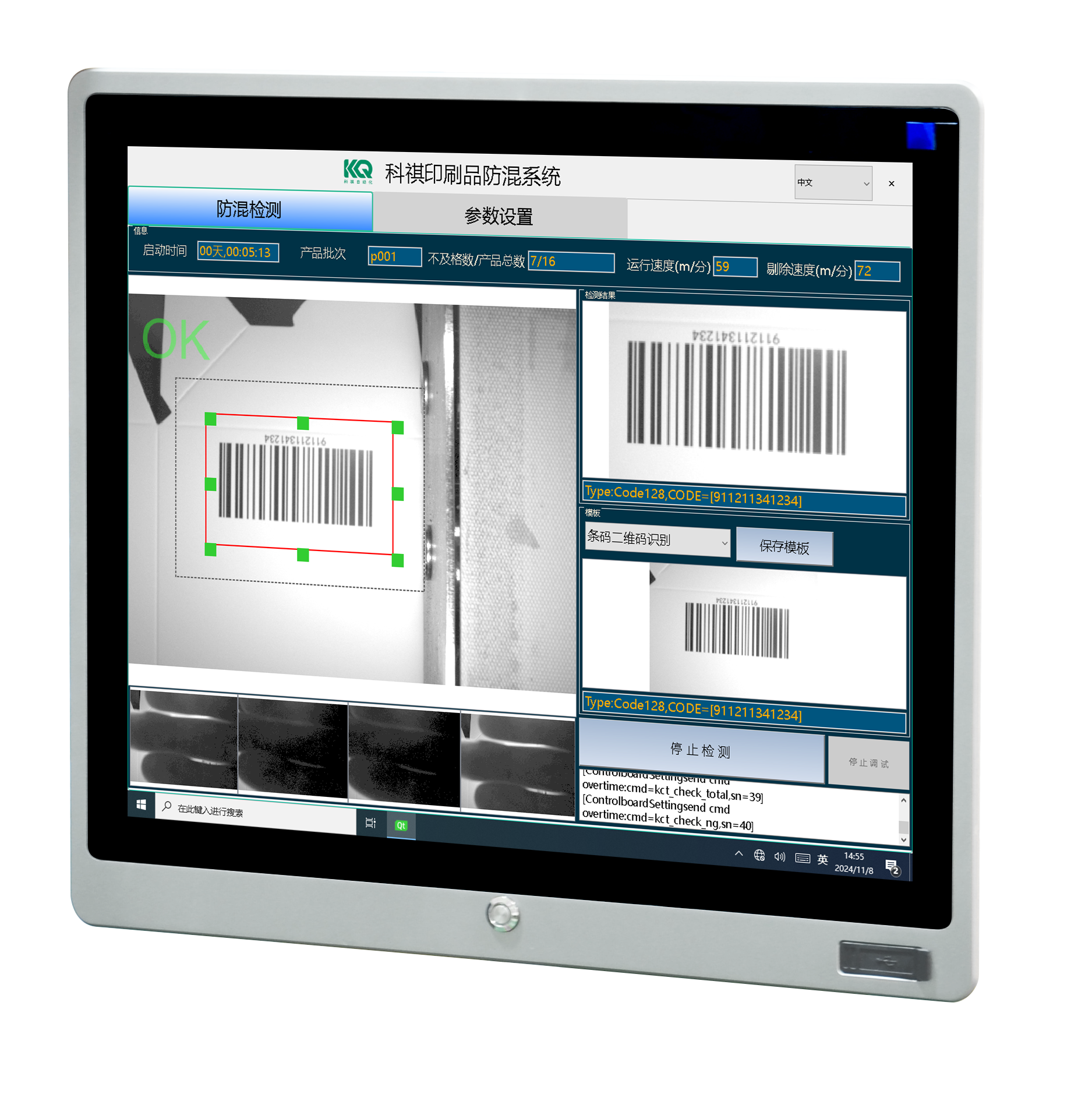

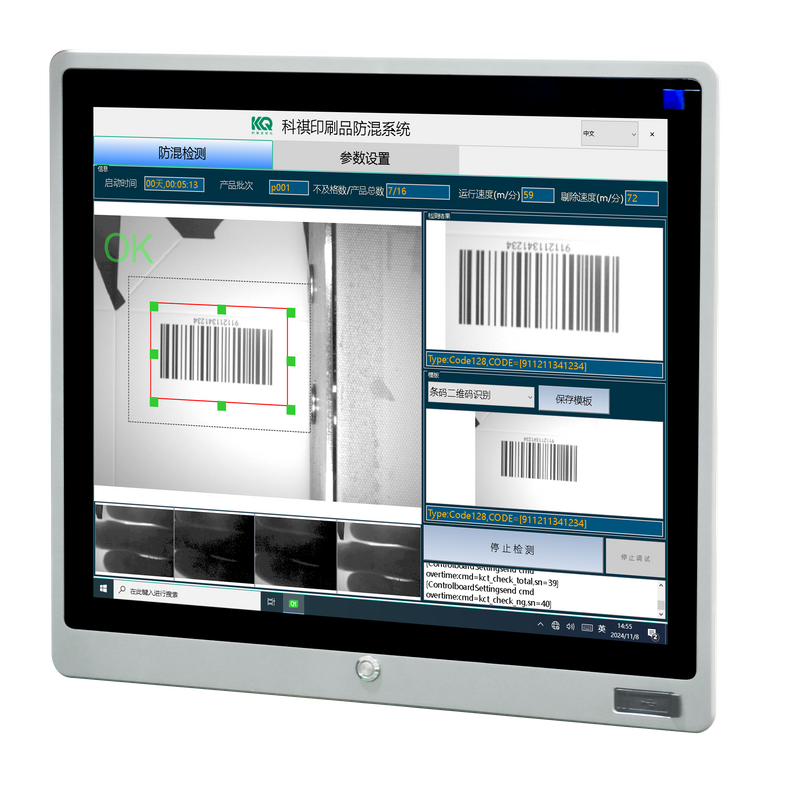

Features | KQ Printing Quality Inspection System utilizes machine vision technology to achieve defect detection in paper boxes, aimed at preventing material mixing and ensuring print quality. The system employs sensors to trigger cameras that capture images of the printed surfaces. Through various methods such as graphic and text comparison, one-dimensional and two-dimensional barcode recognition, laser pattern detection, and color block recognition, it effectively identifies and prevents material mixing and printing defects.1. Touch screen control system easy to operate2. Non-contact automated detection, cuts manual operation, boosts production efficiency and product quality.3. Precise control to eliminate mixing.4.Providing rejection signals to truly achieve efficient production with minimized errors.5.Wide Applicability
|
Specifications | Application product: pharmaceutical packaging, cigarette packaging, 3C product packaging, daily chemical packaging, tags, liquid packaging, food packaging, and corrugated cartons.etc |
Camera Acquisition Mode: Supports software-triggered and hardware-triggered | |

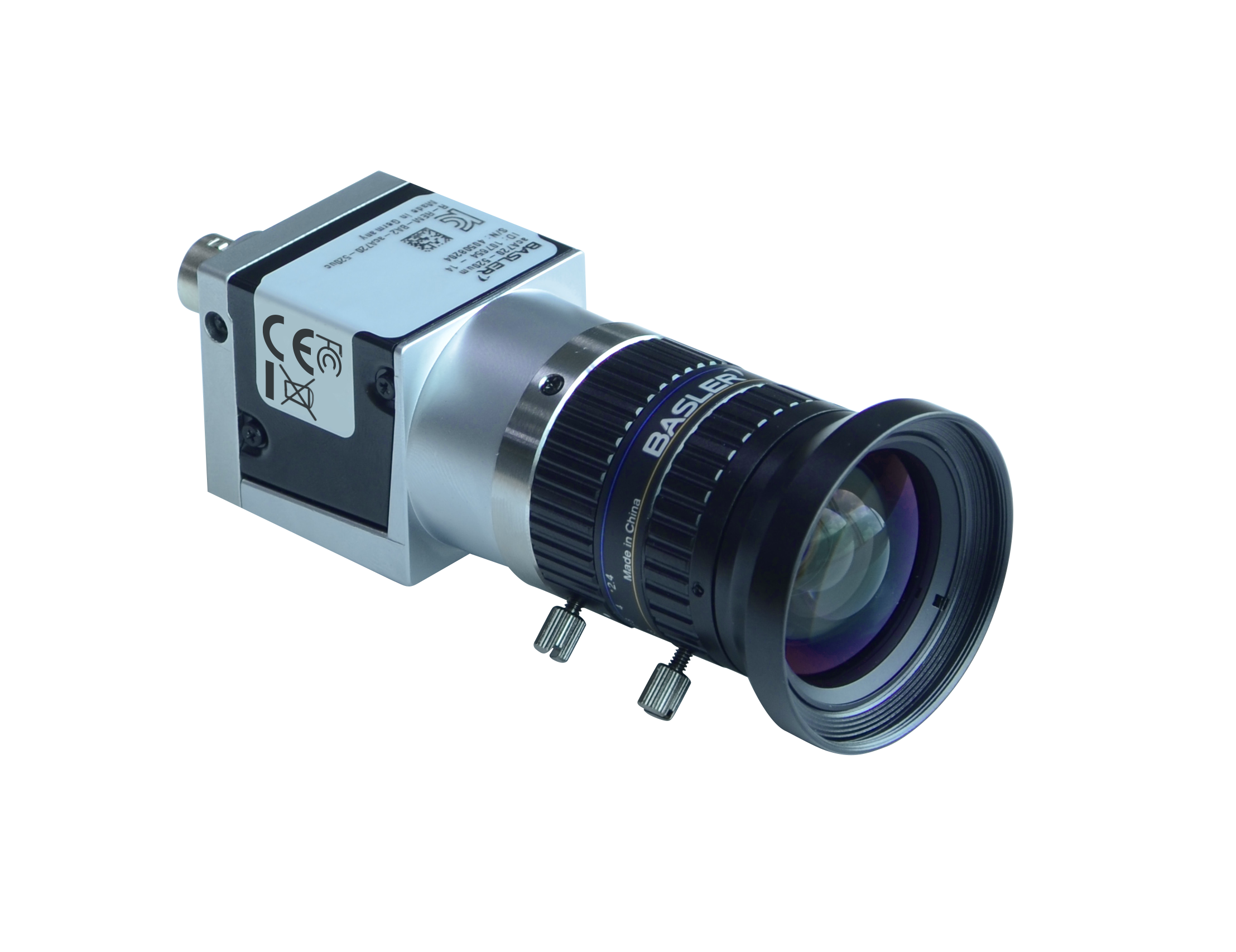

Component: Controller, screen, camera | |
Maximum Running Speed of the Gluing Machine：400 m/min | |
Single Sheet Detection Time:10-20ms | |
Camera Maxmum Shutter Speed:15 µs | |
Distance from Trigger Lens Installation:100 mm | |
Voltage: AC220V 50~60Hz | |
Supported Detection Algorithms:Barcode, QR code, graphic template | |
Distance from Photoelectric Sensor Installation:10~20 mm |

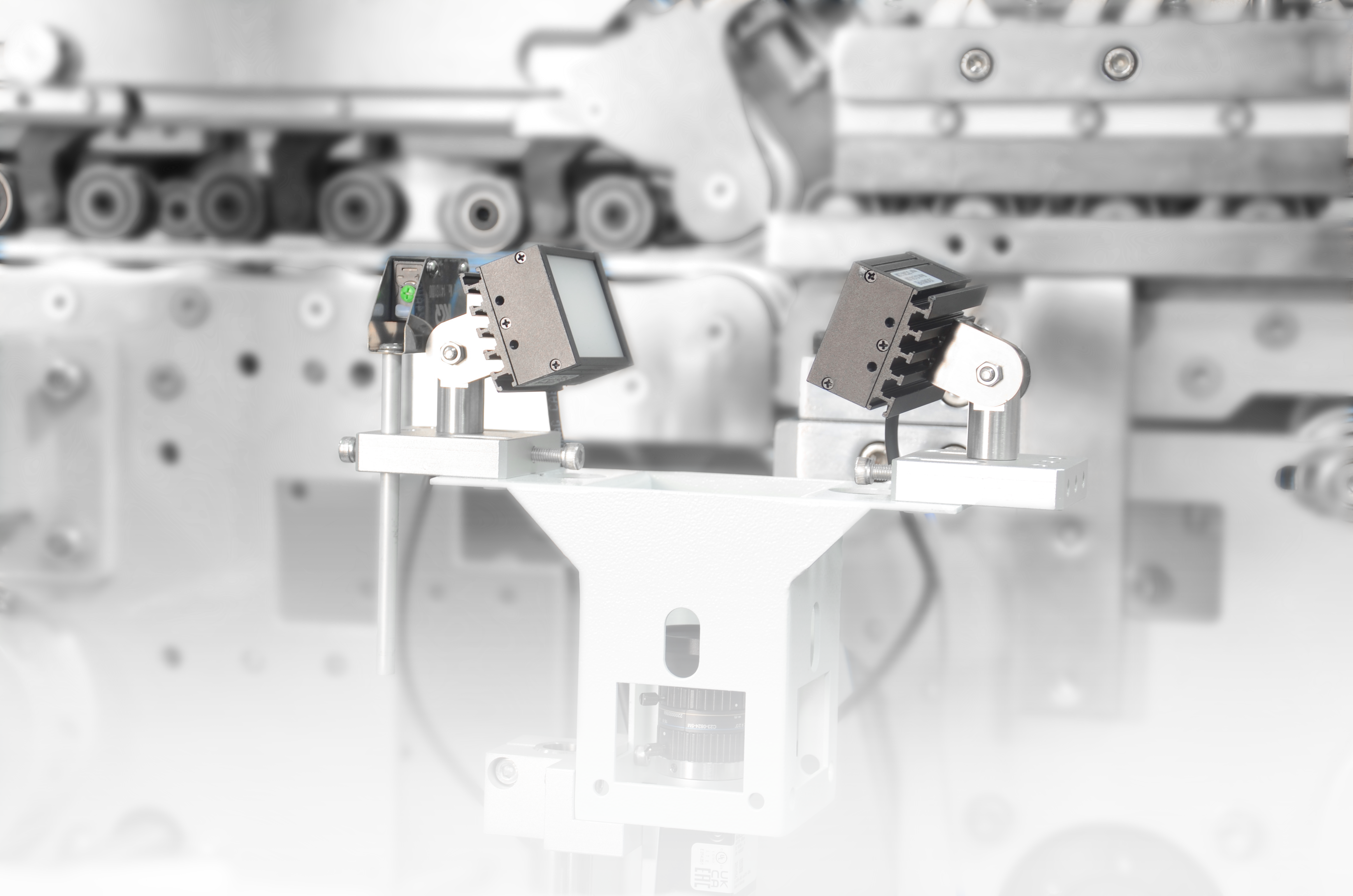

Product Application
<iframe width="560" height="315" src="https://www.youtube.com/embed/b7p_I3MyI_w?si=4WYgOlMhoV_X5gPL" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

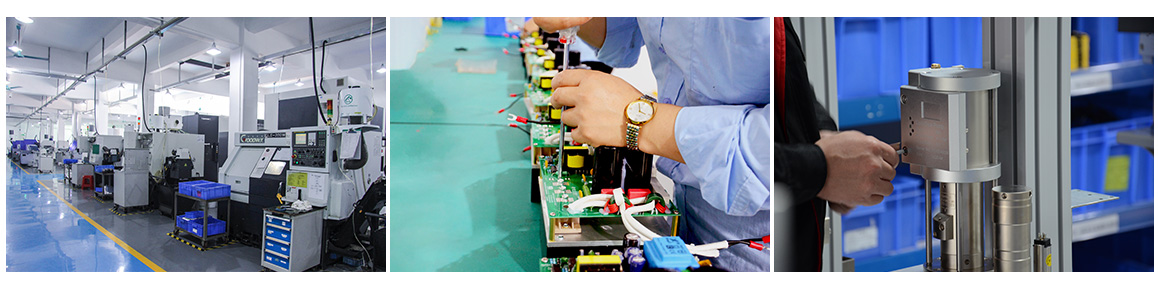

Factory Environment
