Detection System

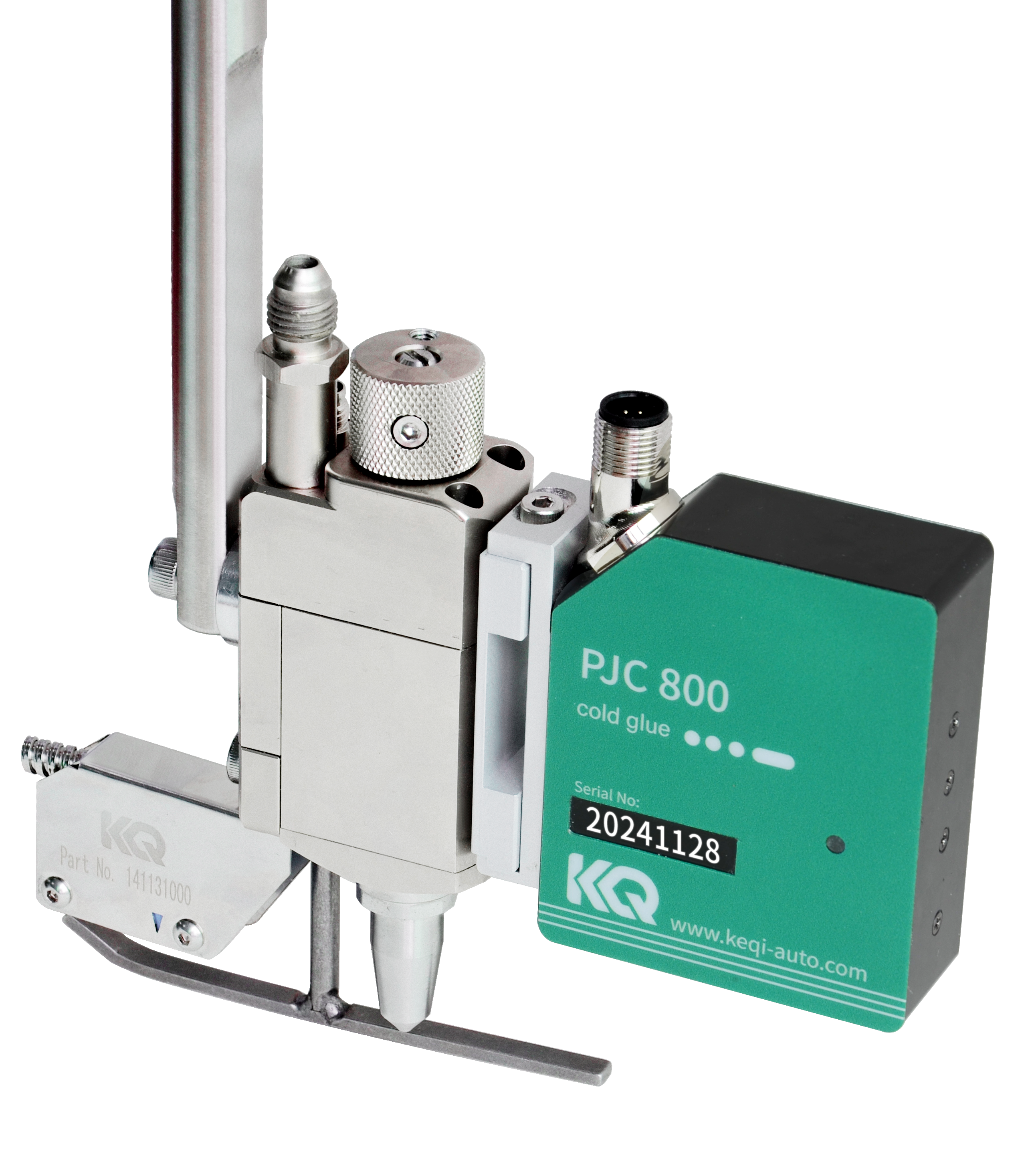

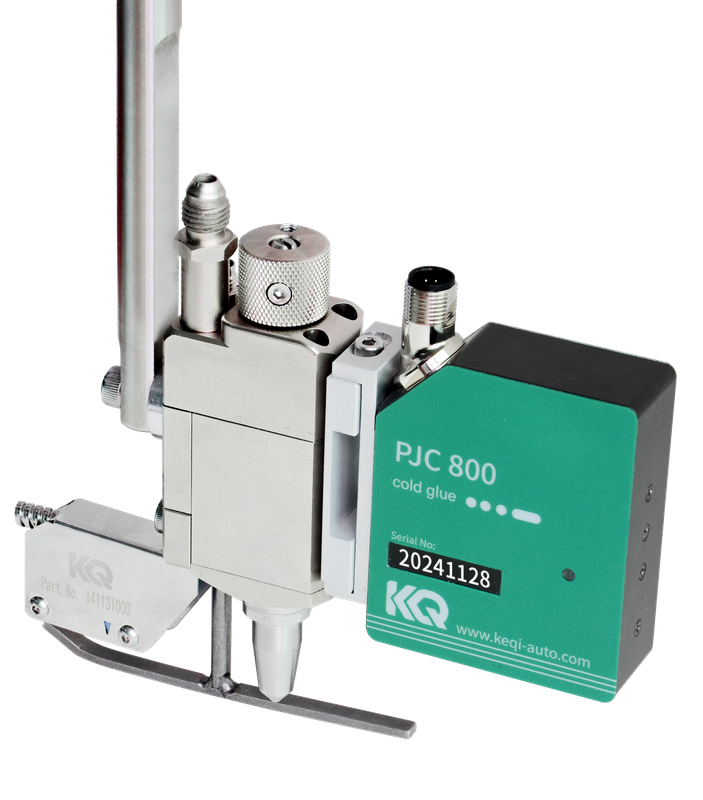

KQ cold glue detection work for gluing inspection automatically ,Including adhesive-free,adhesive position fautly,-adhesive missing etc.Guarantee the quality of the products.Reduce the labor full inspection process in the next program.Easy set up Reliable & high precision monitoring of adhesive -free area.

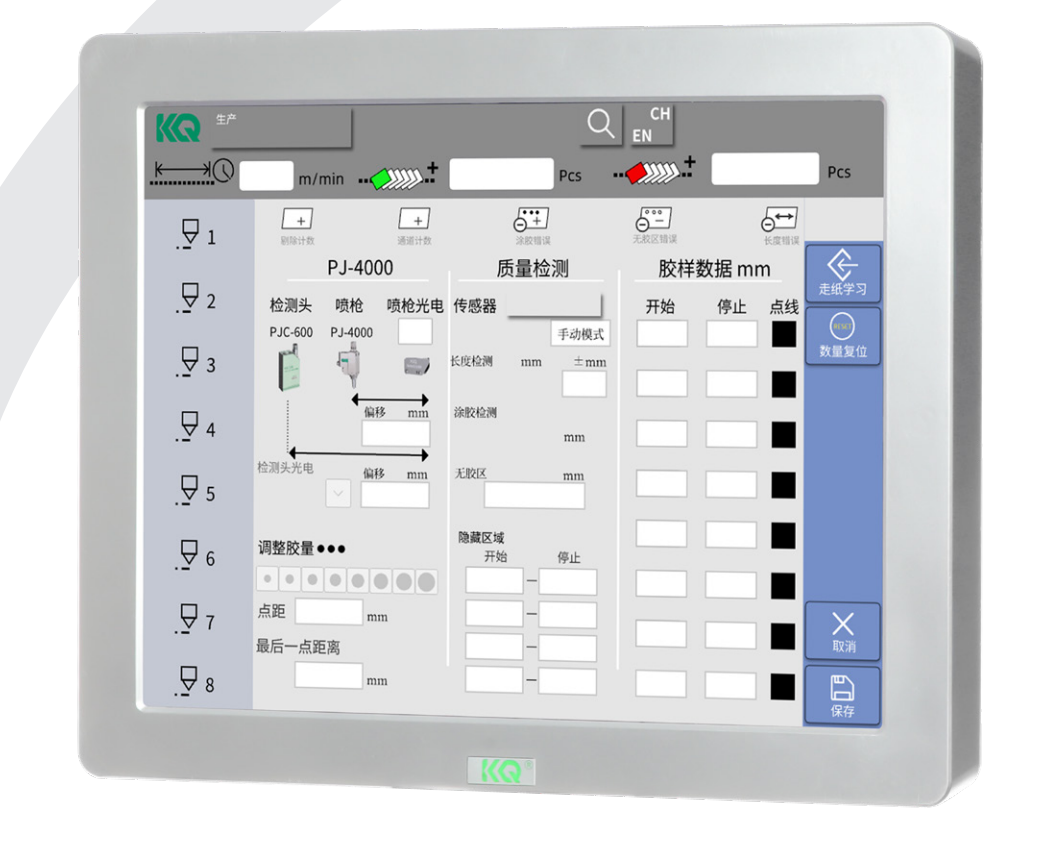

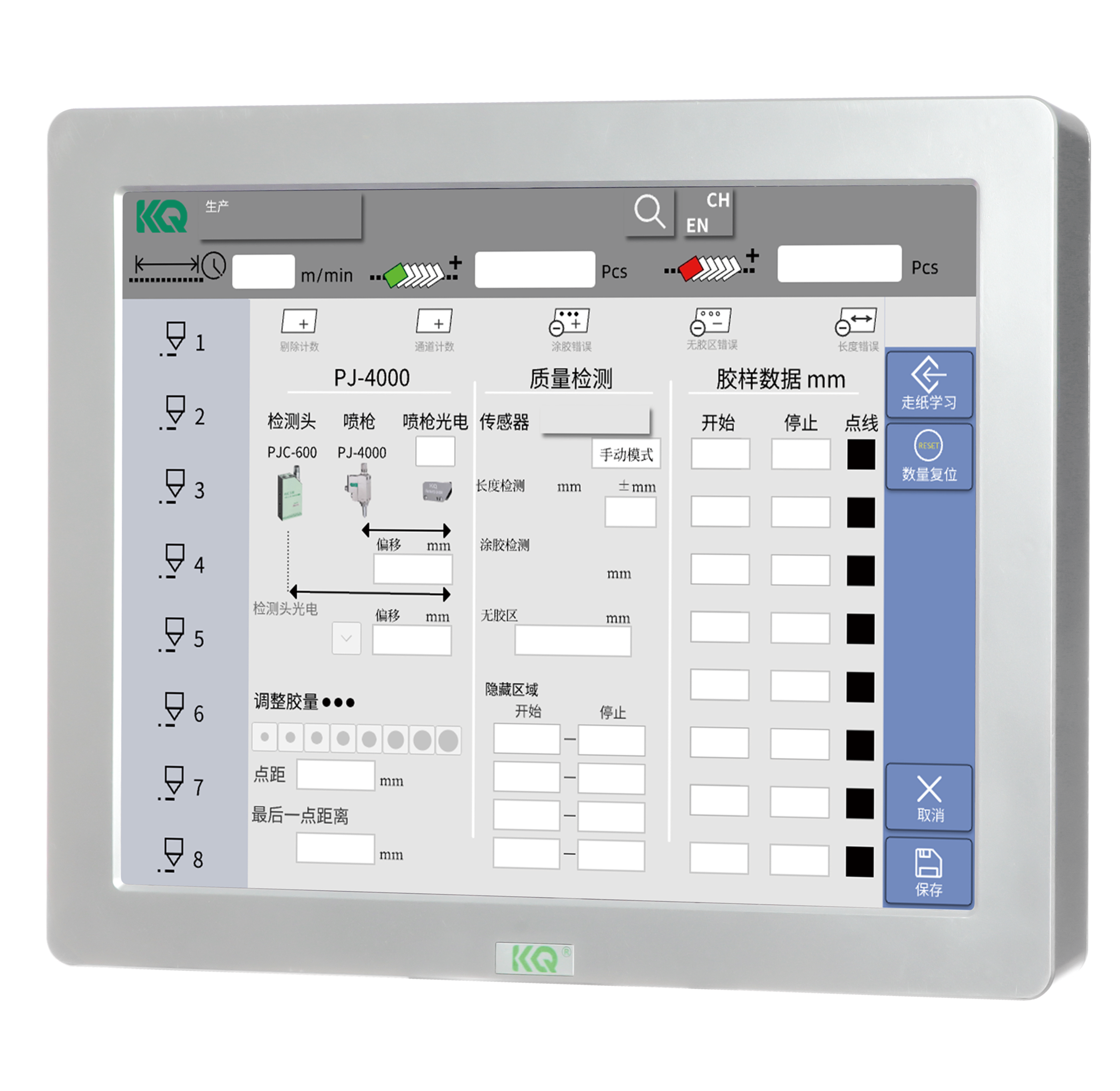

1、Early detection of emerging defects Display fault amounts on the touch screen.

2、Detecte glue volmune after gluing gun ,including glue -missing ,glue volmune more and less ,double sheets feeding of gluing .

Model:
PJC-800
Brand:
KQ

Availability:



Inquire

Product Description

Specification	Technical Data
Model	PJC-800
Detection Resolution	≥2*2mm
Detector Inflection Angle	≤10° inclined angle
Measuring distance to product	25±4mm feed speed
Max.Speed	＜320m/min
Monitorable Min.Width of Line& Dot size	2mm
Measuring Dot Position	Facing location of glued centre (Non- paper passes , Measuring distance within 15cm under non-reflective shelter)
Sitter amplitude of product passing	≤4mm

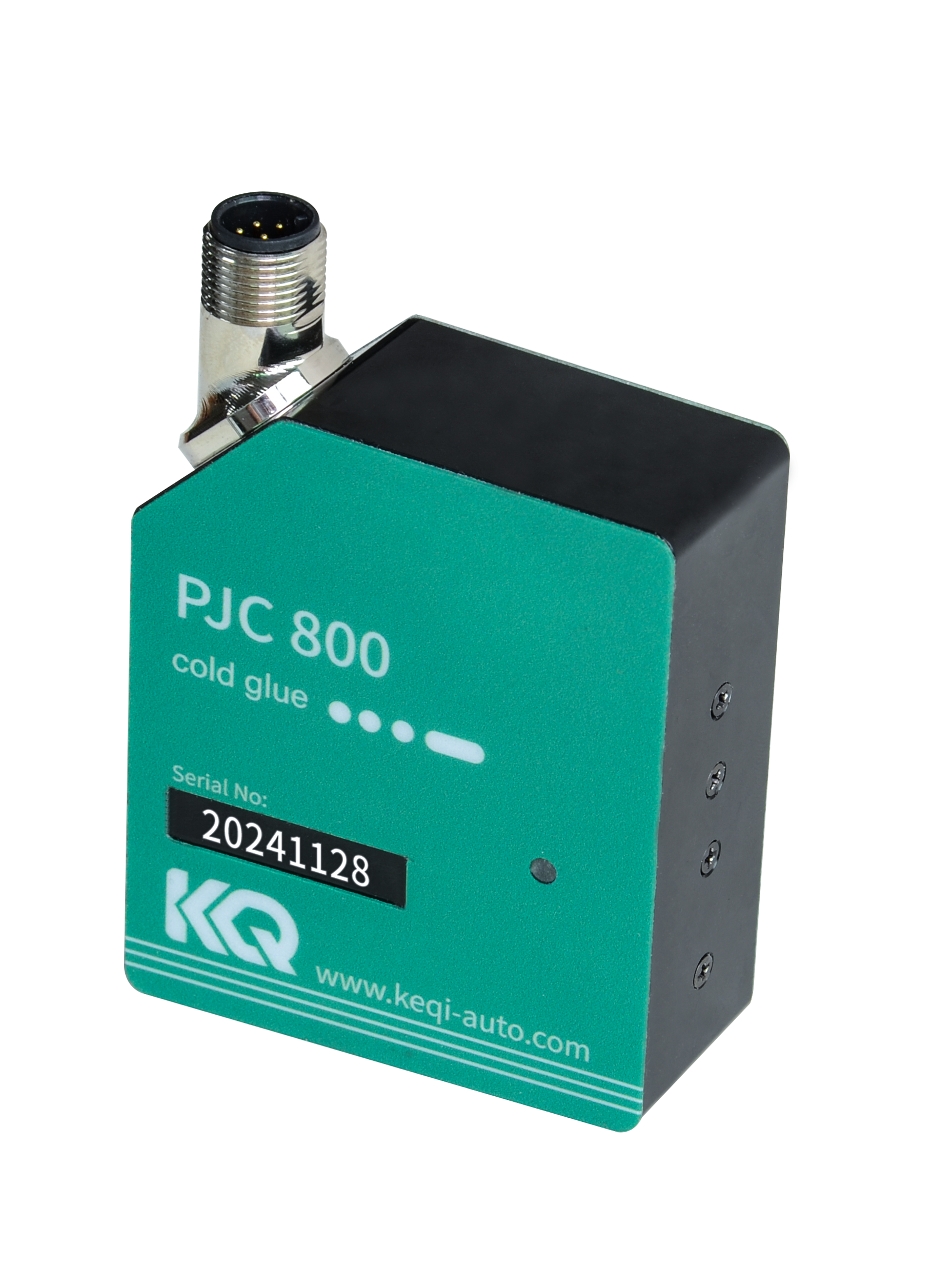

Dimension of detector	L62mmW25 H88.5mm
