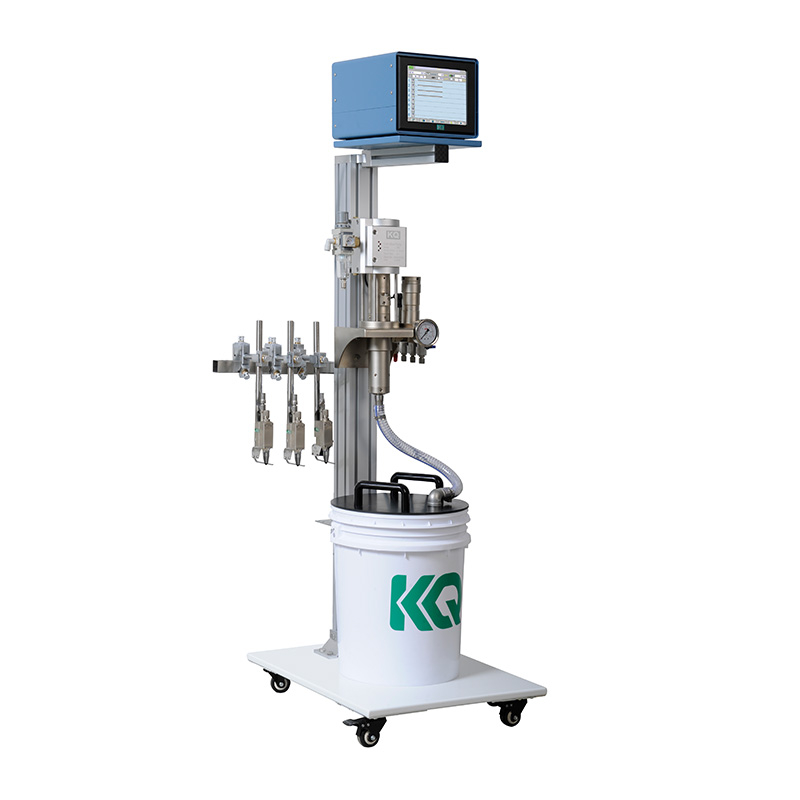

Cold glue application system Cold glue application system

loading

Cold glue application system

Share to:
sharethis sharing button
Application product: straight line box, crash lock box, 4 & 6 corner box, hamburger box, folding etc Model: KPM-PJ-V24 Controller model: HZ4 Pump model: HB6 Head :1-4pcs; 1-8pcs Input power :AC220V 50-60Hz Air pressure request: 6 bar Adhesive viscosity: 700-2000mPas Power :480W N. G: 80KG Dimension:1280W*480L*600H
Availability:


Product Information



Product Name

Cold glue application system

Features

Modular system control, the control and monitoring functions can be operated through the touch screen to achieve comprehensive visual operation through the central touch screen, ensure flexible and intuitive, and provide maximum reliability and quality for high-efficiency processing equipment and production.

KQ cold glue gun, with the characteristics of ultra fast, ware-free electromagnetic and non-contact, spray glue line and dot accurately, even the smallest application. The glue can be sprayed on specific location of the carton and box products with the accuracy of millimeters at any speed, which minimizes the cleaning and installation time during production and reduces waste.

Specifications

Application product: straight line box, crash lock box, 4 & 6 corner box, hamburger box, folding etc

Model: KPM-PJ-V24

Controller model: HZ4

Pump model: HB6

Head :1-4pcs; 1-8pcs

Input power :AC220V 50-60Hz

Air pressure request: 6 bar

Adhesive viscosity: 700-2000mPas

Power :480W

N. G: 80KG

Dimension:1280W*480L*600H



Product Application




Factory Environment


Cold glue application system
